Product Description

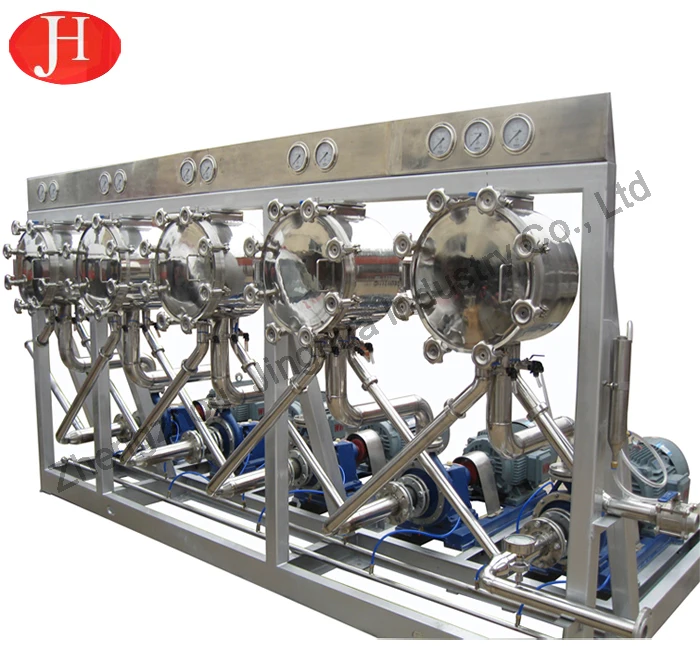

Cassava Starch Processing Equipment Potato Starch Milk Hydrocyclone Making Machine
Zhengzhou jinghua Starch hydro cyclone is used to each kind of starch and modified starch emulsion degreasing, fine slag separation, protein
separation, washing and enrichment, etc. Continuous concentration and separation of food industry suspension, clarification, etc.
With compact structure, high precision, as well as good sealing effect, is widely used in potatoes, cassava, sweet potatoes, corn, wheat, valley
(m) starch, andmodifiedstarch.
Technical parameters
Model | XL325 | XL438 | XL516 | XLS426 | |
Plate quantity | 1 | 1 | 1 | 2 | Group capacity:
3-12t/h
Power:
7.5-45kw/stage
Total weight:
0.3t/stage |
Cylinder diameter(mm) | 362 | 438 | 516 | 426 |
Cylinder norm(mm) | 10,15 | 10,15 | 10,15 | 10,15 |
Feed Pressure(MPa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Inlet Size(mm) | 76 | 89 | 89 | 2* 89 |
Underflow Size(mm) | 48 | 48 | 57 | 76 |
Top flow Size(mm) | 57 | 57 | 76 | 2- 57 |
Advantages of hydrocyclone separator
1. Fully stainless steel to be sure there is no corrosion.
2. Advanced surface treatment craft. Oil and dirty resisting.
3. Widely used for starch extraction in starch processing plants.
4. Multifunction of concentration, recovery, washing and separation for hydrocyclone group.
Working principle
Starch milk enters the middle cavity of the cylinder body through the starch pump from the feeding port of the cyclone. Starch paste enters the
inlet of the cyclone tube and enters the inner part of the cyclone tube along the tangent direction of the cyclone tube. In the swirl tube, the material
components rotate according to the spiral line and generate centrifugal force. And relative density of small proteins and water centrifugal force is
small, the spiral motion, is reduced to about the lower part of the cone resistance by bottom LiuKou formed in the reverse direction of rotation of
the spiral vortex uplink to LiuKou eduction, so as to achieve the purpose of each one.
Why Choose Us
Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing,
engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical
personnel more than 30 people, can provide installation services overseas . The chairman of the board is professor wang yanbo, who is mainly
engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of
starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national
standards and 30 academic papers.
FAQ
Q1:Can you provide detailed parameters and drawings of the equipment?
A:Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.
Q2:How long is the warranty period of the equipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.
Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.
Q4:Are your products can be assured ?
A:Our machines are all have CE certificate by SGS, TUV.
Q5:If we show you our layout of factory, can you help us to design the whole process line?
A :Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6:If we have samples of new products, can you help us to analysis and design the machine?
A:Yes, Our technical department can help you to analysis, design and test the new products you offered.
